Rotor

Rotor Assembly

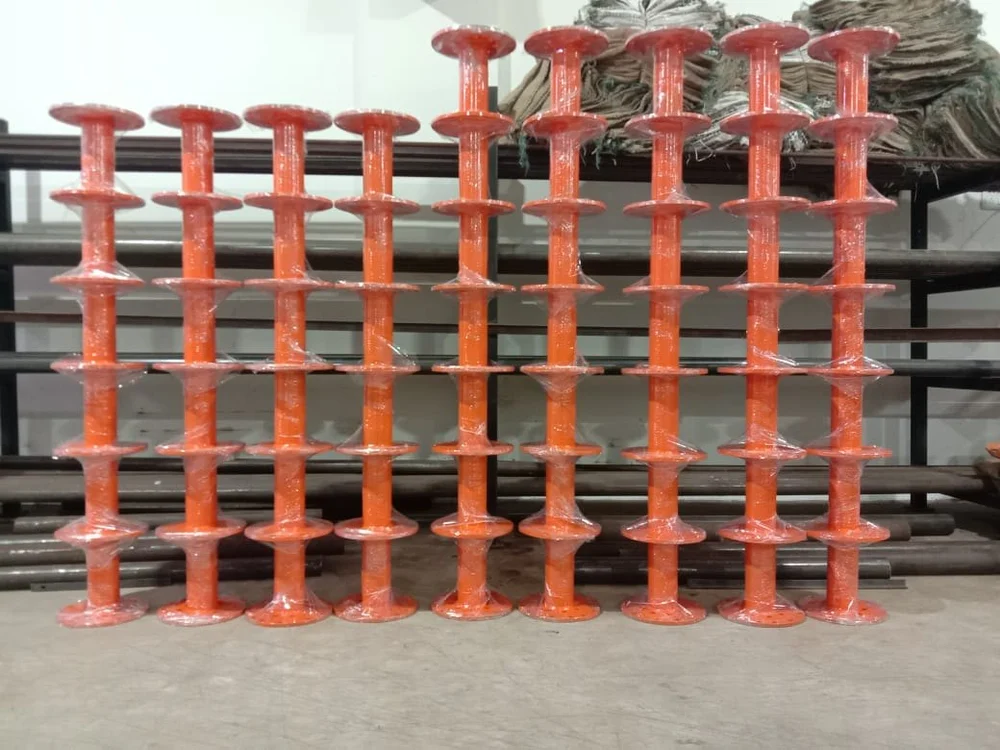

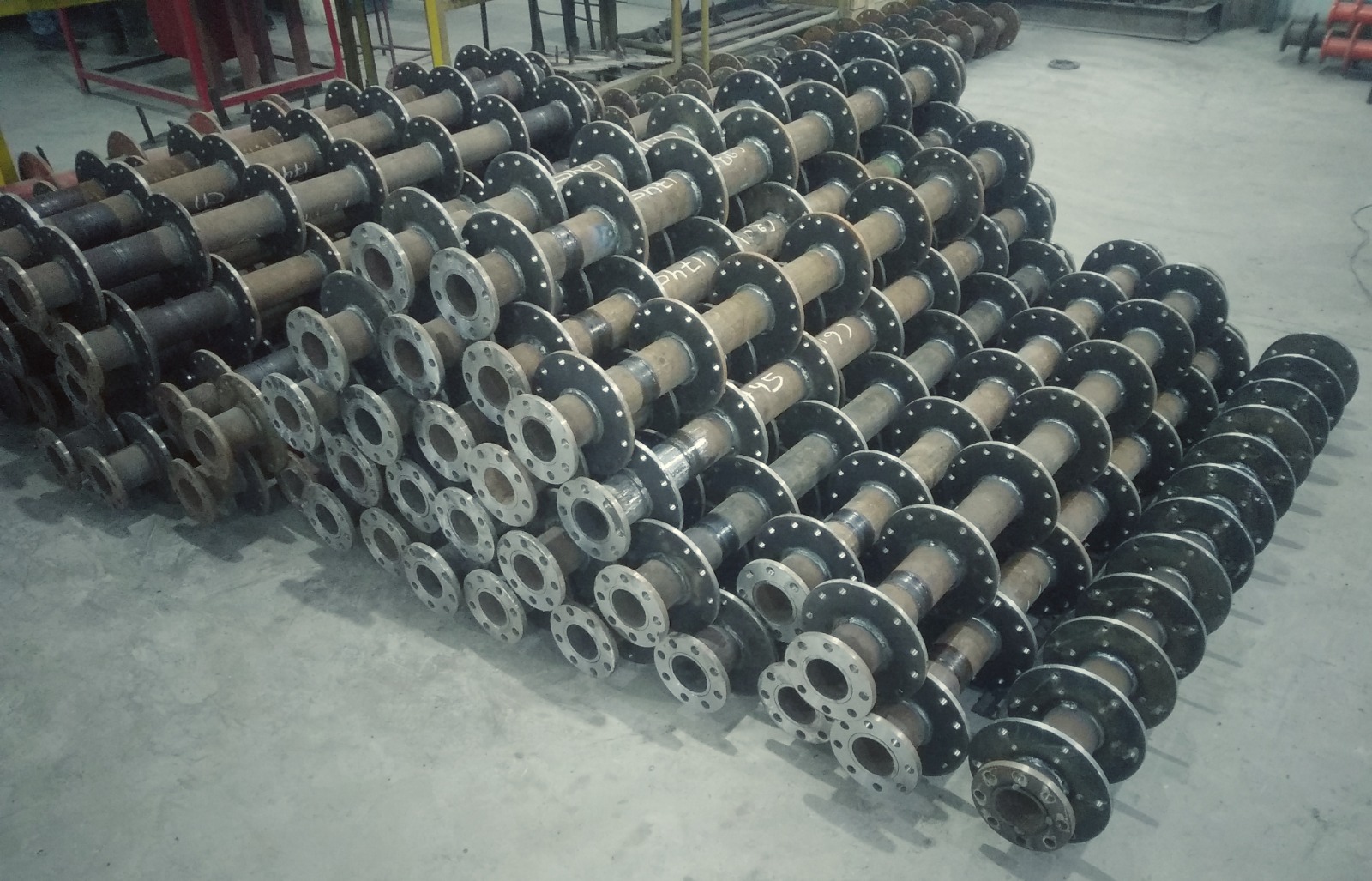

The rotor is a crucial component of the rotavator with its blades responsible for ploughing the soil during rotation. At PBR Industries, we supply fully welded rotors which customers can easily assemble with their rotavators for field use. The rotor features 12mm thick flanges welded onto its pipe providing secure attachment points for the blades. We rigorously check the straightness of the pipes and the run-out of the rotor both before and after welding to ensure optimal performance in the rotavator.

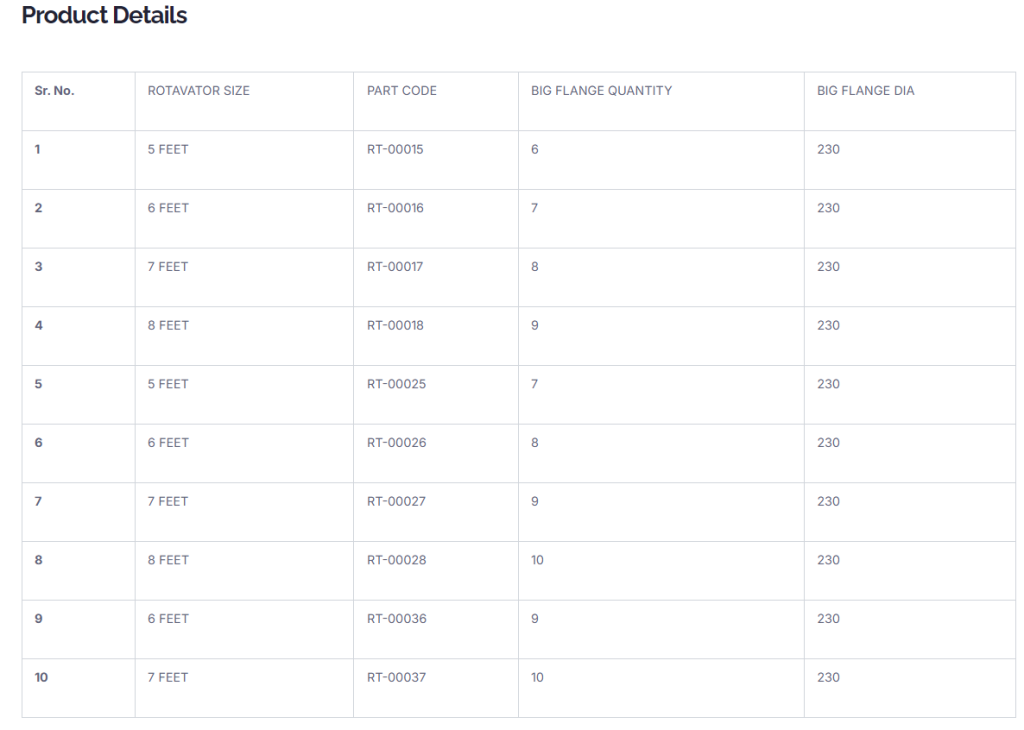

Product Details

Sr. No.ROTAVATOR SIZEPART CODEBIG FLANGE QUANTITYBIG FLANGE DIA
15 FEETRT-000156230
26 FEETRT-000167230
37 FEETRT-000178230
48 FEETRT-000189230
55 FEETRT-000257230
66 FEETRT-000268230
77 FEETRT-000279230
88 FEETRT-0002810230
96 FEETRT-000369230
107 FEETRT-0003710230

Product Details

Sr. No.ROTAVATOR SIZEPART CODEBIG FLANGE QUANTITYBIG FLANGE DIA
15 FEETRT-000156230
26 FEETRT-000167230
37 FEETRT-000178230
48 FEETRT-000189230
55 FEETRT-000257230
66 FEETRT-000268230
77 FEETRT-000279230
88 FEETRT-0002810230
96 FEETRT-000369230
107 FEETRT-0003710230
